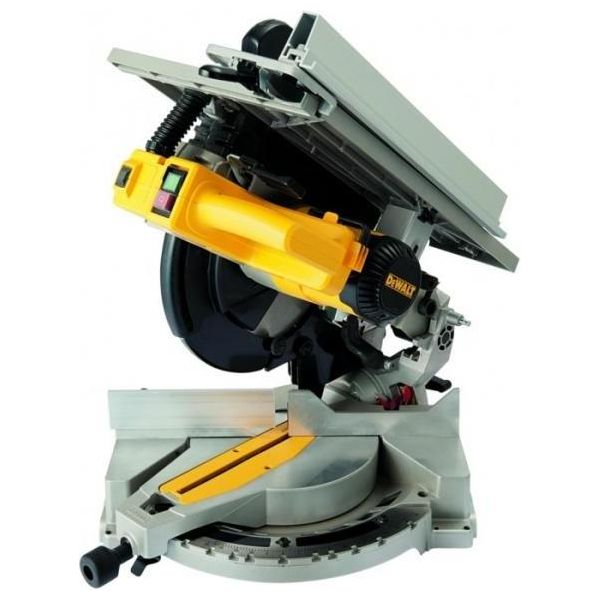

305mm Table top Mitre Saw:
Combination saw for cross-cutting, mitre and rip-cutting applications
Innovative protective cover design ensures maximum operating safety
Telescopic guide mechanism increases cutting capacity
Powerful 1500 Watt induction motor meets the highest expectations in demanding applications
Compact and lightweight for easy transport
Solid die-cast aluminium machine base and table guarantee precise, high-quality cuts in both operating modes
The very stable and high back gauge increases precision in all mitre saw applications
The unique design provides an excellent view of the work in both use modes
All-metal table saw stop with positive cam lock for maximum precision
Power consumption : 1600 Watt
Power output : 1030 Watt
Saw blade speed : 3300 rpm
Saw blade diameter : 305 mm
Saw blade bore : 30 mm
Bevel capacity : 48°
Mitre angles (right/left) : 50/50 °
Cap. at 90°/90°(max. height) : 160 x 85 mm
Cap. at 90°/90°(max. width) : 180 x 40 mm
Cap. at 45°/90°(max. height) : 160 x 55 mm
Cap. at 45°/90°(max. width) : 160 x 55 mm
Cap. at 90°/45°(max. height) : 110 x 85 mm
Cap. at 90°/45°(max. width) : 110 x 85 mm
Max. cutting capacity 45°/45° double mitre : 110 x 55 mm
Max. table capacity under 90° : 51 mm
Weight : 19.5 kg
Depth : 600mm
Length : 500mm
Height : 485mm
Max. cutting capacity at 90°/90° : 180 x 40 mm
Max cutting depth 90°/90°(max height) : 51 mm
Max. cutting capacity : 1 mm
Max. table saw capacity (right) : 1 mm
Max. table saw capacity (left) : 1 mm
